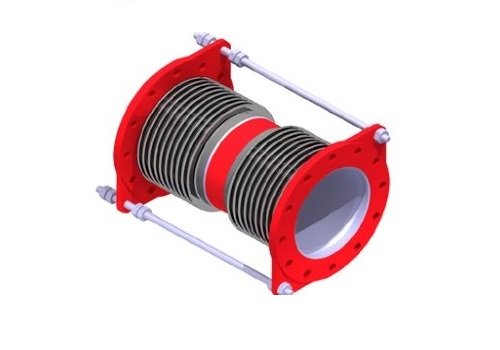

An Expansion Joints is an assembly to soak up the expansion and contraction of varied construction materials, permit movement thanks to ground settlement or earthquakes. An Expansion joint refers to a metal bellows expansion joint designed to absorb axial, lateral and angular motions in piping system. The bellows is that the flexible element of the expansion joint. It must be strong enough circumferentially to face up to the pressure and versatile enough longitudinally to simply accept the deflections that it had been designed, and as repetitively as necessary with a minimum resistance. This strength with flexibility is a unique design problem that is not often found in other components pressure balanced bellows expansion joint in baroda.

pressure balanced bellows expansion joint

Since the bellows must accept deflections repetitively, and deflections result in stresses, these stresses must be kept as low as possible so that the repeated deflections will not result in premature fatigue failures. In this project a metal expansion joint along with the bellows and the entire pipe cross over and the pressure parts in the cross over is designed by considering above words while designing. In the cross over pressure balanced bellows expansion joint is replaced instead of Single Expansion Joints and Elbow Pressure Balanced Expansion Joints is also present in the cross over. Pressure is applied in the cross over. Design calculation is done manually.

Then the design is modeled in the software Inventor. so that only that movement will occur. This expansion joint won’t resist any deflections with any force aside from the resistance of the bellows, which may be a function of the spring rate times the deflection amount. pressure balanced bellows expansion joint thrust along its axis, which is the product of the pressure times the effective, or cross-sectional, area of the bellows. Large diameter units, even with low pressures, can generate very large axial pressure thrust forces, also must be reacted by main and directional anchors. Otherwise the expansion joint will extend with disastrous results so pressure balanced bellows expansion joint. pressure balanced bellows expansion joint.

Most engineered structures are designed to inhibit deflection when acted upon by outside forces. Since the bellows must accept deflections repetitively, and deflections result in stresses, these stresses must be kept as low as possible so that the repeated deflections will not result in premature fatigue failures. Reducing bending stress resulting from a given deflection is definitely achieved by simply reducing the thickness of the bending member, which within the case of the bellows, is that the convolution. However, in order to withstand the pressure, also pressure balanced bellows expansion joint in vadodara,

Most bellows fail by circumferential resulting from cyclic bending stresses, or fatigue. Since the simplest design may be a compromise, or balance, between pressure strength and adaptability considerations, it is often concluded that their designs have had lower margins of safety regarding fatigue than they had regarding pressure strength. The years of experience of the engineers who developed these bellows assures that the designs contained during this catalog and people offered to satisfy customer specifications will have the performance reliability which yields trouble-free, safe use. Occasionally, a bellows will appear to develop a fatigue crack prematurely, pressure balanced bellows expansion joint in gujarat than analysis indicates they should.

Insufficient margin of safety within the design permitting acceptance of a unit manufactured within some of the dimensional tolerance range to yield a neighborhood which can not satisfy the planning . Metallic bellows bending stresses are extremely sensitive to changes in some dimensions, like the thickness and therefore the height of the convolution. These dimensional characteristics often affect the varied bending stresses by the square or cube of their differences. An understanding of those dimensional factors and the way they will be controlled during design and manufacture is that the key to preventing this explanation for early failure.

Bellows in clusters can be employed as robotic limbs, such as manipulator arms and legs for walking machines. For limb bending, analysis shows that there’s an optimal geometry for satellite bellows, or a group of identical bellows clustered longitudinally a few central core. For limb torsion, the bellows are clustered during a cylindrical helix whose angle is chosen to supply the specified load–displacement relationships, as an example the very best rotation for a given torque. For both bending and torsional limbs, experimental results are included that exhibit the anticipated mechanical behavior.

All materials expand & contract thermal change & pressure change. In case of piping systems, this dimension change can produce excessive stresses throughout the piping system and at fixed points like vessels and rotating equipment, also as within the pipe itself. pressure balanced bellows expansion joint

Metal bellows expansion joint contains a versatile bellows element, appropriate end fitting like flanges or butt weld ends to permit connection to the adjacent piping or equipment, and other accessory items that may be required for a particular service
application. pressure balanced bellows expansion joint,
